RF Load & Attenuator
• Ultra Broadband DC~40GHz
• Temperature -55℃ to +125℃
• Small size with firm structure and high stability
• Customized specifications and outlines
• Ultra Broadband DC~40GHz
• Temperature -55℃ to +125℃
• Small size with firm structure and high stability
• Customized specifications and outlines
RF load is commonly used to terminate RF products.RISE Electronics supplies broadband and high power loads cover the frequency range DC~67.5GHz.1.0/2.3, 1.85mm, 2.4mm, 2.92mm, 3.5mm, 4.1/9.5 Mini DIN, 4.3-10, 7/16 DIN, BMA, BNC, MCX, Mini SMP, MMCX, Type N, QMA, SMA, SMB, SMC, SMP, SSMA, SSMC, TNC connector series are available.Our RF loads provide great performance over the entire operating range and with power handling capabilities up to 800 Watts.
| Load Model | Frequency Range(GHz) | VSWR | Power（CW) | Connector type |
| RSTLDC4000MN50 | DC-4 | 1.25 | 50W | N SMA TNC |
| RSTLDC4000MN100 | DC-4 | 1.25 | 100W | N SMA TNC |
| RSTLDC4000MN200 | DC-4 | 1.25 | 200W | N SMA TNC |
| RSTLDC12400MN50 | DC-12.4 | 1.3 | 50W | N SMA TNC |
| RSTLDC12400MN100 | DC-12.4 | 1.3 | 100W | N SMA TNC |
| RSTLDC12400MN200 | DC-12.4 | 1.3 | 200W | N SMA TNC |
| RSTLDC18000MN10 | DC-18 | 1.25 | 10W | N SMA TNC |
| RSTLDC18000MN20 | DC-18 | 1.25 | 20W | N SMA TNC |
| RSTLDC18000MN50 | DC-18 | 1.25 | 50W | N SMA TNC |
| RSTLDC18000MN100 | DC-18 | 1.25 | 100W | N SMA TNC |
| RSTLDC18000MN200 | DC-18 | 1.25 | 200W | N SMA TNC |
| RSTLDC26.5G2 | DC-26.5 | 1.3 | 2W | 3.5mm SMP |
| RSTLDC40G2 | DC-40 | 1.3 | 2W | 2.92mm SMP |
| RSTLDC50G2 | DC-50 | 1.35 | 2W | 2.4mm SMP |
| RSTLDC67.5G2 | DC-67.5 | 1.35 | 2W | 1.85mm |
| RSTLDC110G2 | DC-110 | 1.35 | 2W | 1.0mm |
| Note: Specifications are subject to change without prior notification | ||||
RF attenuator is often used to reduce o an RF signal's strength.Rise Electronics supplies a wide range of RF attenuators that can be used in both lab and production environments for many applications including R&D, test & measurement, military/defense, telecommunications, aerospace and more.Our RF attenuators include fixed, step and variable attenuators. Coaxial fixed RF attenuators have 0 dB to 60 dB maximum attenuation values with frequency maximums that range from 1000 MHz to 67.5 GHz depending on product. Radio frequency fixed attenuators are available in 1.85mm, 2.4mm, 2.92mm, 3.5mm, 7/16 DIN, BNC, F, MCX, MMCX, N, QMA, SMA, SMB, SMP, SSMA and TNC connector series with female, male and plug genders.
| Attenuator Model | Frequency (GHz) | Deviation(dB) | VSWR | Power（CW） | Size(mm) |
| DC-26.5 | 1-10±0.5 | 1.25 | 2W | P1 | |
| RSATTDC26500MS | DC-26.5 | 20-30±0.7 | 1.25 | 2W | P1 |
| DC-26.5 | 40-60±0.8 | 1.25 | 2W | P1 | |
| DC-40 | 1-6±0.8 | 1.25 | 2W | P2 | |
| RSATTDC40000MS | DC-40 | 10-30±0.8 | 1.25 | 2W | P2 |
| DC-40 | 40-60±1 | 1.25 | 2W | P2 | |
| DC-50 | 1-6±0.8 | 1.25 | 2W | P3 | |
| RSATTDC50000MS | DC-50 | 10-30±0.8 | 1.25 | 2W | P3 |
| DC-50 | 40-60±1 | 1.25 | 2W | P3 | |
| Note: Specifications are subject to change without prior notification | |||||

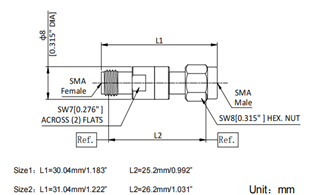

P1: DC-26.5GHz Attenuator

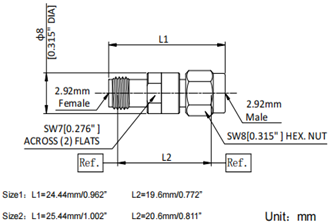

P2: DC-40GHz Attenuator
P3: DC-50GHz Attenuator
